T.V53.03 Universal LCD TV Controller Driver Board PC/VGA/HDMI/USB Interface

Description:
Model: T.V53.03
Tuner: V53
Scheme of the chip: V53
TV Format: Analog Signal
Input Interface: PC / HDMI / TV / AV / USB multimedia playing
Power Adapter: DC 12V 3-5A
Screen interface: LVDS Single 6 / 8 , Double 6 / 8
Screen voltage: 3.3V / 5V / 12V (Jump cap)
Resolution: Support high screen 1920 * 1080, 8.9-42 inch LVDS screen (support most of the panels,but not all)
Not only USB interface can be used to upgrade programs, but also can use to play video/music/photo, basically formats are supported. You can also set a boot display pictures or LOGO and Mirror Enable.


Programming:
-Copy firmware of "VST53C_4MB_M.bin" in formatted U-disk(FAT32) ,then insert U-disk and 7KEY-Button to driver board.
-After turn on the power ,the light of the 7key button be Red then flash red faster.
IT KEEPS flashing and NEVER STOP. it's normal, just wait about 1 minute, it means upgrade has finished. then power off and pull off the u-disk. (Note that write programs do not power outages, crashing won't be able to use)
Package Including:

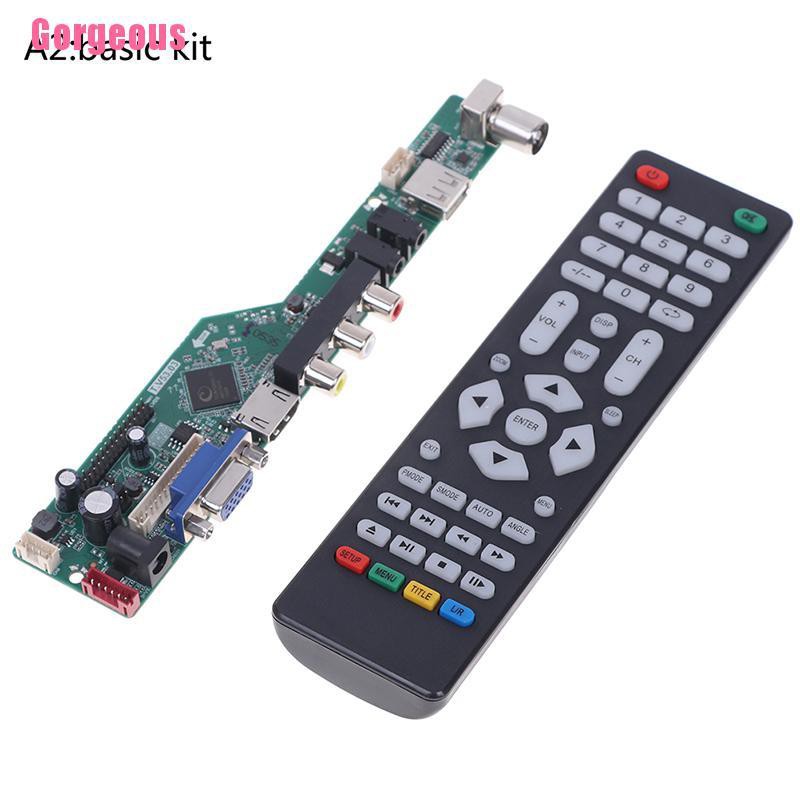

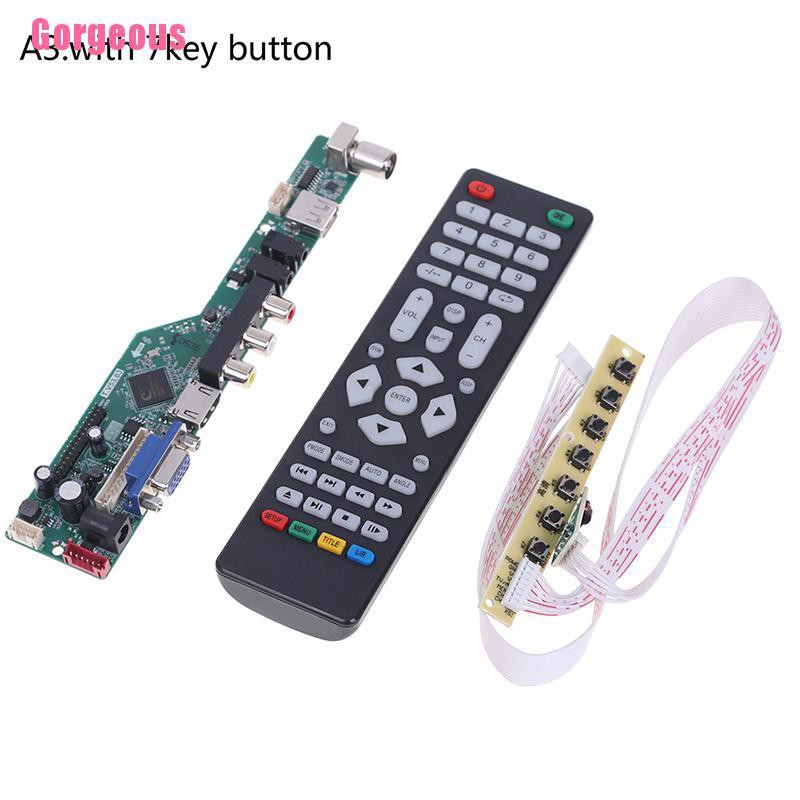

1 x LCD TV Controller Board/Board+Remote Control/with 7 key button
